Dashboard Segment · Reports & dashboards · free

A segment per widget. Compare audiences on one dashboard.

Give every dashboard widget its own view of your data: a segment and a time range per widget, with a dashboard-wide default that filters the whole dashboard.

Latest v5.0.2 · Matomo ≥ 5.0.0

Running on 17 Matomo instances

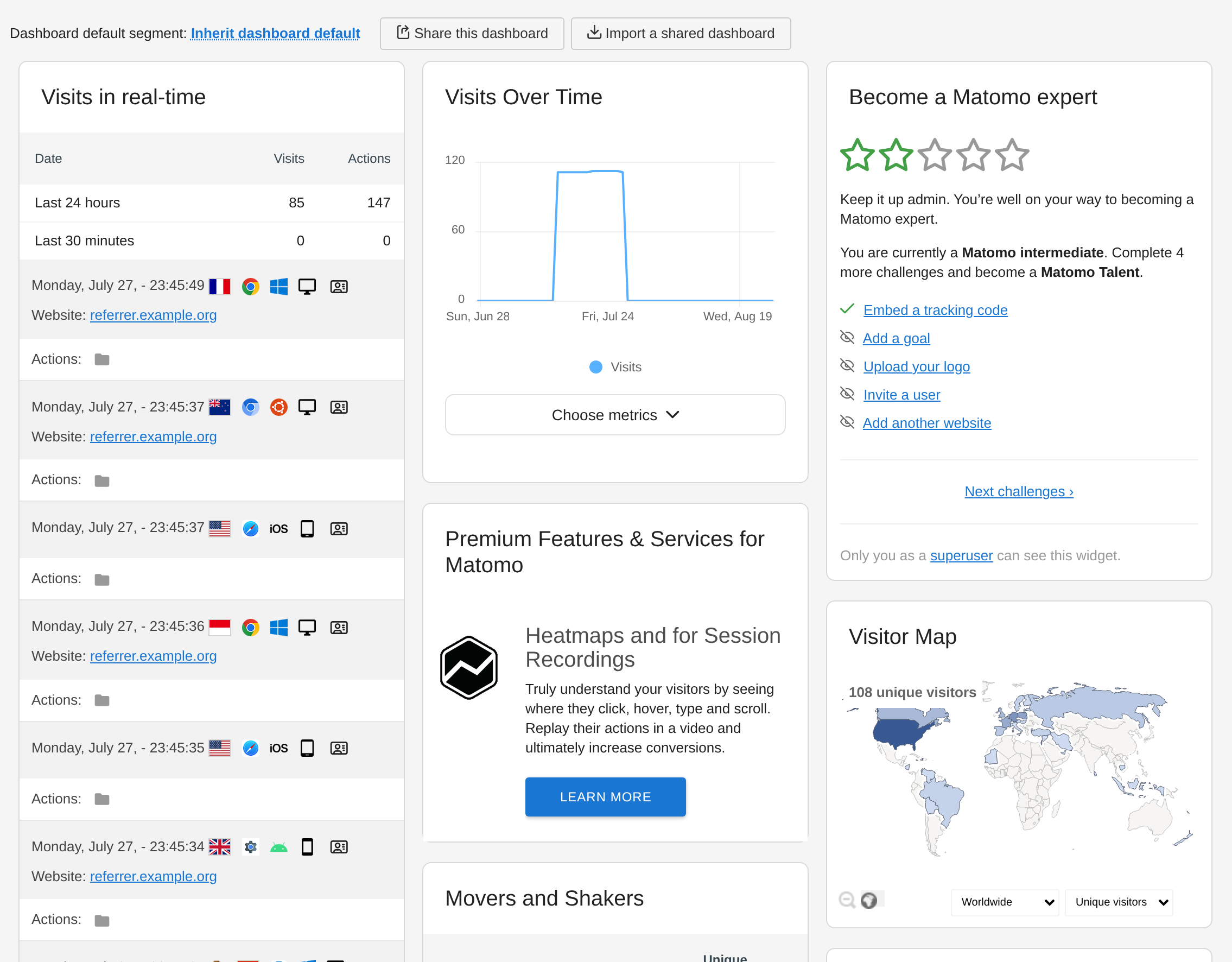

How Dashboard Segment works: a segment and time range per widget, one dashboard instead of one per audience
What it does for you
01

Mixed dashboards, finally

Build boards like an "AI traffic" dashboard where most widgets use an AI-referrer segment, while the chatbot widgets keep showing all data.

02

Set once, applies everywhere

A dashboard-wide default segment covers every widget; individual widgets can override it or opt out.

03

A default that filters everything

A dashboard-wide default segment filters the whole dashboard, including the live widgets, maps and graphs that load in the browser, not only the standard report widgets.

04

No duplicate dashboards

Stop cloning boards per segment or updating copies. One dashboard tells the whole story and is maintained in one place.

Click to enlarge

Use cases

Give every widget its own segment and its own time range

Give every widget on your Matomo dashboard its own segment and its own time range instead of maintaining a separate dashboard for every audience.

Read the use case →
Frequently asked questions

No. Until you pick a segment for a widget or set a dashboard default, everything behaves exactly like stock Matomo.

Any saved Matomo segment that is available to you for the current website. The picker sits right in the widget header.

Yes. Segment and time range choices are stored per dashboard and website and applied every time the widgets load.

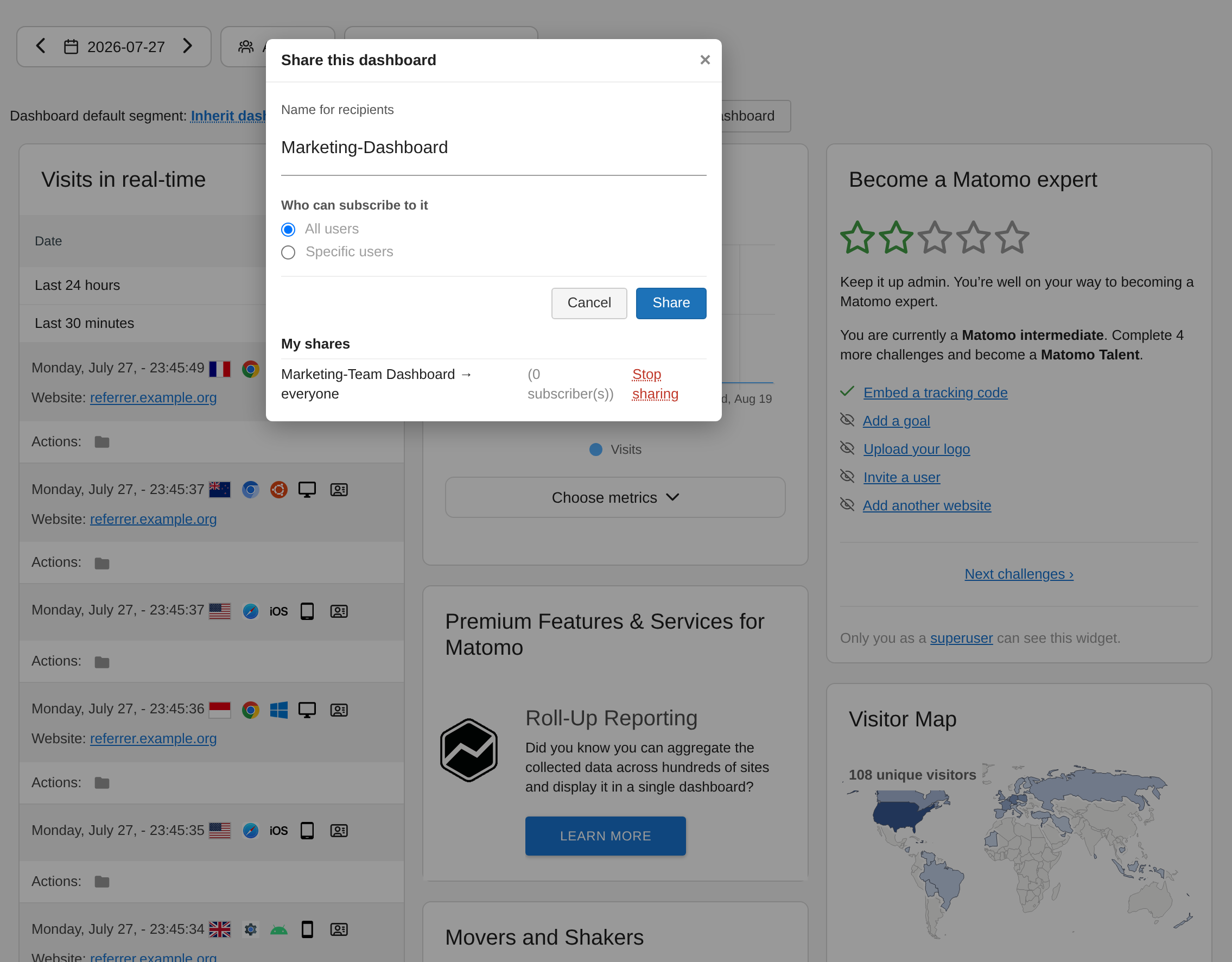

Yes. Dashboard sharing is now the separate free plugin Dashboard Sharing. Install it to share dashboards with your team. With Dashboard Segment installed too, a shared dashboard also carries each widget's segment and time range.

Install via the Feinwerk connector
  1. 01 Install the Feinwerk Connector from Matomo's Marketplace: under Administration › Platform › Marketplace, search for "Feinwerk", install and activate it. Without the Marketplace: download the ZIP.
  2. 02 Open Feinwerk Plugins and click "Connect with Feinwerk account". If your browser cannot reach the store, enter your instance token in the connector settings instead.
  3. 03 Open the Feinwerk Plugins screen, find Dashboard Segment, and click Install.
How to install the connector

Prefer a manual install? Download the ZIP of version 5.0.2 and install it yourself. Download ZIP · Documentation for Dashboard Segment

Missing a feature in Dashboard Segment? Tell us what you need →

For the technically curious

Dashboard Segment

Dashboard Segment lets you choose a Matomo segment per dashboard widget, with a dashboard-wide default that individual widgets can override or opt out of.

Matomo's dashboards apply one segment to every widget at once: the one chosen in the segment selector at the top. That makes mixed dashboards impossible, for example an "LLM / AI analysis" dashboard where most widgets should use an AI referrer segment, but the AI chatbot widgets must show all data (they have no AI referrer by definition). Dashboard Segment fixes that.

Features

  • Per-widget segment: pick a saved segment for any individual widget from a button in its header.
  • Dashboard default: set one default segment for the whole dashboard; widgets inherit it.
  • Three states per widget: inherit the default, use a specific segment, or show all data without a segment, which wins even over a dashboard default.
  • Per widget instance: the same widget can appear twice on a dashboard with different segments, useful for side-by-side comparison.
  • Time range per widget: fix a widget to today, yesterday, the last 7 or 30 days, this week, this month or this year, or let it follow the dashboard's period.
  • Per website: segments and time ranges are chosen and applied separately for each website; only the segments available for the current website are offered.
  • Visible at a glance: a slim bar under the widget header shows the active segment and time range, each with an × to remove it.

Order of precedence: the widget's own choice, then the dashboard default, then Matomo's segment selector.

Dashboard sharing is now the separate free plugin Dashboard Sharing. Install it to share dashboards with your team. With Dashboard Segment installed too, it carries each widget's segment and time range.

How it works

Dashboard Segment only adds to Matomo: it changes no files of Matomo or of the bundled Dashboard plugin.

  • The segment list comes from your saved segments in Matomo's segment editor. To use a new segment (e.g. AI referrer), create it there once; it then appears in the picker.
  • Choices are personal: they are stored per user, dashboard and website.
  • The plugin works for signed-in users with at least view access to the website. For viewers who are not signed in it stays idle.

Requirements

  • Matomo 5
  • The bundled Dashboard and SegmentEditor plugins (active by default).

Installation

With one click through the Feinwerk connector or as a ZIP file, see Installing plugins.

Usage

  1. Open a dashboard.
  2. Click the segment button in a widget's header and pick a segment, "No segment (all data)" or "Inherit dashboard default".
  3. Optionally, use the calendar button next to it to set a time range for this widget.
  4. Use the Dashboard default segment control above the widgets to set a default for the whole dashboard.
  5. Switch websites to manage each website's selection independently.

Known limitations

  • A dashboard-wide default filters the whole dashboard, including widgets that load in the browser (real-time, maps, sparklines, evolution graphs). What stays impossible is a per-widget exception on those widgets, so their per-widget buttons are hidden; standard report widgets support per-widget choices fully.
  • If you change a segment's conditions later in the segment editor, widgets keep the conditions they were set with, and the bar shows "Custom segment" instead of the name. Pick the segment again in that case.

License

Free plugin under GPL v3 or later.
